Examples

To run this code, store it in a file (e.g., test.alc), and execute the following commands:

python scripts/run_local_modelverse.py 8001 &
python scripts/make_parallel.py http://localhost:8001 test test.alc bootstrap/primitives.alc
python scripts/prompt.py

In the prompt, log on to http://localhost:8001 as user test. Now, all input you send, will be caught in the input() calls seen in the code. Results will also be printed.

Note that all content will, by default, be typed as string. If you want to send integers or so, prepend the input with a backslash (\), which allows you to directly input the JSON code. For example, input 5 will be received as the string “5”. To send the integer 5, the input should be \5.

Fibonacci Server

The first example is a simple Fibonacci server. The code is identical to the action language example from before, as this already included the server part (i.e., the while loop). Now we will just connect to it using prompt.py and try out the code directly.

The code is repeated below:

include "primitives.alh"

Integer function fib(param : Integer):
    if (param <= 2):
        return 1!
    else:
        return fib(param - 1) + fib(param - 2)!

Void function main():
    while(True):
        output(fib(input()))

To run this code, save it to a file (e.g., fibonacci.alc) and execute the following command:

python scripts/run_local_modelverse.py 8001

Now, the Modelverse is running, but we still need to upload our code. To compile the file, together with the primitives.alc file, execute the following command:

python scripts/make_parallel.py http://localhost:8001 test fibonacci.alc bootstrap/primitives.alc

When this finishes, the Modelverse now stores a copy of our code in its own format. The Modelverse will automatically create the user test and start executing the main function as this user. We can therefore simply connect to the Modelverse as the test user and start seeing the responses. To start the prompt, execute the following command:

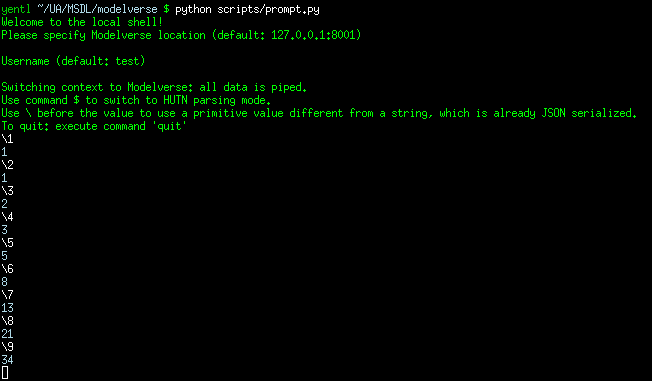

python scripts/prompt.py

In this prompt tool, you first have to configure the location of the Modelverse and the username. The defaults should be fine, so just press <return> twice. After that, you are in direct connection with the Modelverse. Each message you type in, is made available in the input() function of the code. Remember that, to send integers, you have to prefix this with a backslash (\). To get, for example, the 1st Fibonacci number, type in the command:

\1

You will now see the following.

Since we are in an unconditional loop, you can send as many requests as you want, as long as they are understandable by the fib function.

Inputting a string directly, such as 1 instead of \1, will make the Modelverse crash on the execution of this code. This is normal, though in the future the Modelverse will keep running for other users: only the current user’s code will be interrupted.

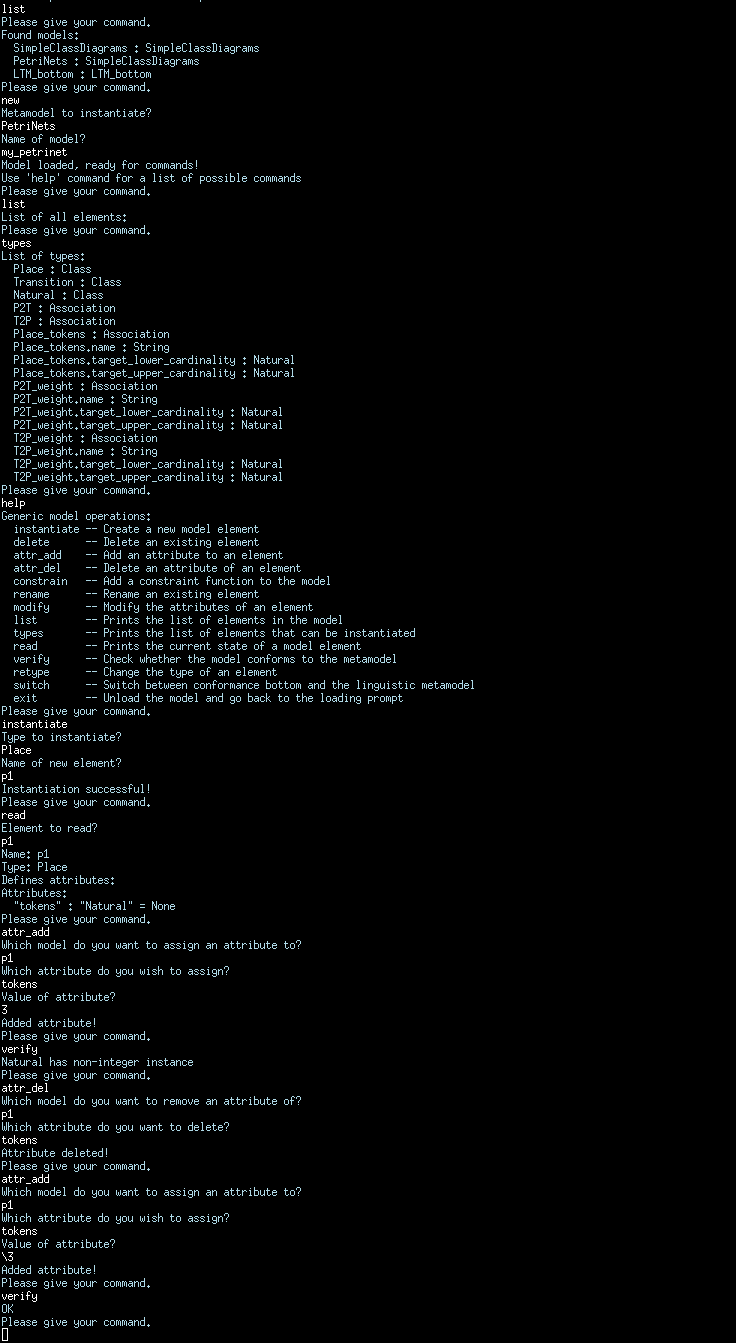

Modelling Server

The simple Fibonacci server is not very relevant to the primary concern of the Modelverse: (meta-)modelling. But since we can create whatever kind of server we want, a simple (meta-)modelling server is created. The code offers an interface for users to execute modelling operations. The interface itself mostly just relays the incoming messages and operations to the internal modelling library.

The full code is seen below:

include "primitives.alh"
include "constructors.alh"
include "object_operations.alh"
include "library.alh"
include "conformance_scd.alh"
include "io.alh"
include "metamodels.alh"
include "modelling.alh"
include "compilation_manager.alh"

Element function model_loaded(model : Element):
    String cmd

    Element attr_list_pn
    Element attr_keys_pn
    String attr_key_pn
    Element metamodel_element_pn
    String typename
    Boolean bottom
    Element other_metamodel

    bottom = False
    other_metamodel = create_node()
    dict_add(other_metamodel, "model", model["model"])
    dict_add(other_metamodel, "type_mapping", create_node())
    dict_add(other_metamodel, "metamodel", import_node("models/LTM_bottom"))
    dict_add(other_metamodel, "inheritance", other_metamodel["metamodel"]["model"]["__Inheritance"])

    output("Model loaded, ready for commands!")
    output("Use 'help' command for a list of possible commands")

    while (True):
        output("Please give your command.")
        cmd = input()
        if (cmd == "help"):
            output("Generic model operations:")
            output("  instantiate -- Create a new model element")
            output("  delete      -- Delete an existing element")
            output("  attr_add    -- Add an attribute to an element")
            output("  attr_del    -- Delete an attribute of an element")
            output("  constrain   -- Add a constraint function to the model")
            output("  rename      -- Rename an existing element")
            output("  modify      -- Modify the attributes of an element")
            output("  list        -- Prints the list of elements in the model")
            output("  types       -- Prints the list of elements that can be instantiated")
            output("  read        -- Prints the current state of a model element")
            output("  verify      -- Check whether the model conforms to the metamodel")
            output("  retype      -- Change the type of an element")
            output("  switch      -- Switch between conformance bottom and the linguistic metamodel")
            output("  exit        -- Unload the model and go back to the loading prompt")
        elif (cmd == "exit"):
            return model!
        elif (cmd == "instantiate"):
            String mm_type_name
            output("Type to instantiate?")
            mm_type_name = input()
            if (dict_in(model["metamodel"]["model"], mm_type_name)):
                String element_name
                output("Name of new element?")
                element_name = input()
                if (dict_in(model["model"], element_name)):
                    output("Element already exists; aborting")
                else:
                    if (is_edge(model["metamodel"]["model"][mm_type_name])):
                        output("Source name?")
                        String src_name
                        src_name = input()
                        if (dict_in(model["model"], src_name)):
                            output("Destination name?")
                            String dst_name
                            dst_name = input()
                            if (dict_in(model["model"], dst_name)):
                                instantiate_link(model, mm_type_name, element_name, src_name, dst_name)
                                output("Instantiation successful!")
                            else:
                                output("Unknown destination; aborting")
                        else:
                            output("Unknown source; aborting")
                    else:
                        instantiate_node(model, mm_type_name, element_name)
                        output("Instantiation successful!")
            else:
                output("Unknown type specified; aborting")
        elif (cmd == "set_inheritance"):
            String inh_name

            output("Which link in the metamodel is the inheritance link?")
            inh_name = input()

            if (dict_in(model["metamodel"]["model"], inh_name)):
                dict_add(model, "inheritance", model["metamodel"]["model"][inh_name])
                output("Set inheritance link!")
            else:
                output("Element not found in metamodel; aborting")

        elif (cmd == "constrain"):
            output("Element to constrain (empty for global)?")
            String model_name
            model_name = input()

            if (model_name == ""):
                // Global constraint
                output("Give input to function constructors for GLOBAL constraint!")
                set_model_constraints(model, construct_function())
            elif (dict_in(model["model"], model_name)):
                // Local constraint for this model
                output("Give input to function constructors for LOCAL constraint!")
                add_constraint(model, model_name, construct_function())
                output("Added constraint to model!")
            else:
                // Local constraint, but model not found
                output("Unknown model; aborting")
        elif (cmd == "modify"):
            String model_name
            output("Element to modify?")
            model_name = input()
            if (dict_in(model["model"], model_name)):
                Element attrs
                attrs = getAttributeList(model, model_name)
                String attr_name
                output("Attribute to modify?")
                attr_name = input()
                if (set_in(dict_keys(attrs), attr_name)):
                    output("New value?")
                    unset_attribute(model, model_name, attr_name)
                    instantiate_attribute(model, model_name, attr_name, input())
                    output("Modified!")
                else:
                    output("No such attribute!")
            else:
                output("No such model!")
        elif (cmd == "attr_add"):
            String model_name
            output("Which model do you want to assign an attribute to?")
            model_name = input()
            if (dict_in(model["model"], model_name)):
                Element attrs
                attrs = getAttributeList(model, model_name)
                String attr_name
                output("Which attribute do you wish to assign?")
                attr_name = input()
                if (set_in(dict_keys(attrs), attr_name)):
                    output("Value of attribute?")
                    instantiate_attribute(model, model_name, attr_name, input())
                    output("Added attribute!")
                else:
                    output("No such attribute!")
            else:
                output("No such model!")
        elif (cmd == "attr_del"):
            String model_name
            output("Which model do you want to remove an attribute of?")
            model_name = input()
            if (dict_in(model["model"], model_name)):
                Element attrs
                attrs = getAttributeList(model, model_name)
                String attr_name
                output("Which attribute do you want to delete?")
                attr_name = input()
                if (set_in(dict_keys(attrs), attr_name)):
                    unset_attribute(model, model_name, attr_name)
                    output("Attribute deleted!")
                else:
                    output("No such attribute!")
            else:
                output("No such model!")
        elif (cmd == "delete"):
            output("What is the name of the element you want to delete?")
            cmd = input()
            if (dict_in(model["model"], cmd)):
                model_delete_element(model, cmd)
                output("Deleted!")
            else:
                output("No such element; aborting")
        elif (cmd == "rename"):
            output("Old name?")
            String old_name_e
            old_name_e = input()
            if (dict_in(model["model"], old_name_e)):
                output("New name?")
                String new_name_e
                new_name_e = input()
                if (dict_in(model["model"], new_name_e)):
                    output("New name already used; aborting")
                else:
                    dict_add(model["model"], new_name_e, model["model"][old_name_e])
                    dict_delete(model["model"], old_name_e)
                    output("Rename complete!")
            else:
                output("Unknown element; aborting")
        elif (cmd == "list"):
            Element keys_m
            keys_m = dict_keys(model["model"])
            output("List of all elements:")
            String v_m
            while (read_nr_out(keys_m) > 0):
                v_m = set_pop(keys_m)
                // Filter out anonymous objects
                if (bool_not(string_startswith(v_m, "__"))):
                    typename = reverseKeyLookup(model["metamodel"]["model"], dict_read_node(model["type_mapping"], model["model"][v_m]))
                    output((("  " + v_m) + " : ") + typename)
        elif (cmd == "read"):
            output("Element to read?")
            cmd = input()
            if (dict_in(model["model"], cmd)):
                Element read_elem
                read_elem = model["model"][cmd]
                metamodel_element_pn = dict_read_node(model["type_mapping"], read_elem)

                output("Name: " + cmd)
                output("Type: " + reverseKeyLookup(model["metamodel"]["model"], metamodel_element_pn))
                if (is_edge(read_elem)):
                    output("Source: " + reverseKeyLookup(model["model"], read_edge_src(read_elem)))
                    output("Destination: " + reverseKeyLookup(model["model"], read_edge_dst(read_elem)))
                if (cast_v2s(read_elem) != "None"):
                    output("Value: " + cast_v2s(read_elem))
                output("Defines attributes:")
                attr_list_pn = getInstantiatableAttributes(model, read_elem)
                attr_keys_pn = dict_keys(attr_list_pn)
                while (0 < read_nr_out(attr_keys_pn)):
                    attr_key_pn = set_pop(attr_keys_pn)
                    output(((("  " + attr_key_pn) + " : ") + cast_v2s(attr_list_pn[attr_key_pn])))
                output("Attributes:")
                attr_list_pn = getAttributeList(model, cmd)
                attr_keys_pn = dict_keys(attr_list_pn)
                while (0 < read_nr_out(attr_keys_pn)):
                    attr_key_pn = set_pop(attr_keys_pn)
                    output((((("  " + cast_v2s(attr_key_pn)) + " : ") + cast_v2s(attr_list_pn[attr_key_pn])) + " = ") + cast_v2s(read_attribute(model, reverseKeyLookup(model["model"], read_elem), attr_key_pn)))
            else:
                output("Unknown element; aborting")
        elif (cmd == "verify"):
            output(conformance_scd(model))
        elif (cmd == "types"):
            Element keys_t
            keys_t = dict_keys(model["metamodel"]["model"])
            output("List of types:")
            String v_t
            while (read_nr_out(keys_t) > 0):
                v_t = set_pop(keys_t)
                if (bool_not(string_startswith(v_t, "__"))):
                    output(string_join(("  " + v_t) + " : ", reverseKeyLookup(model["metamodel"]["metamodel"]["model"], dict_read_node(model["metamodel"]["type_mapping"], model["metamodel"]["model"][v_t]))))
        elif (cmd == "retype"):
            output("Element to retype?")
            String elementname
            elementname = input()
            if (dict_in(model["model"], elementname)):
                output("New type")
                typename = input()
                if (dict_in(model["metamodel"]["model"], typename)):
                    // OK, do the retyping
                    // First try removing the previous type if it exists
                    dict_delete(model["type_mapping"], model["model"][elementname])
                    // Now add the new type
                    dict_add(model["type_mapping"], model["model"][elementname], model["metamodel"]["model"][typename])
                    output("Retyped!")
                else:
                    output("Unknown type; aborting")
            else:
                output("Unknown element; aborting")
        elif (cmd == "switch"):
            bottom = bool_not(bottom)

            Element tmp_model
            tmp_model = model
            model = other_metamodel
            other_metamodel = tmp_model

            if (bottom):
                // The type mapping we are using is probably not complete for our model
                // so we completely recreate it from the model we have.
                output("Switching to conformance bottom mode!")
                generate_bottom_type_mapping(model)
            else:
                // We already switched the models and such, so we are already done!
                output("Switching to linguistic metamodel!")
        else:
            output("Unknown command: " + cast_v2s(cmd))
            output("Use command 'help' to get a list of available commands")

Element function main():
    output("Welcome to the Model Management Interface, running live on the Modelverse!")
    output("Use 'help' command for a list of possible commands")
    String command
    Element root
    Element metamodel
    String name
    Element my_model
    String mm_name

    root = create_metamodels()

    while (True):
        output("Please give your command.")
        command = input()

        if (command == "help"):
            output("Currently no model is loaded, so your operations are limited to:")
            output("  new    -- Create a new model and save it for future use")
            output("  load   -- Load a previously made model")
            output("  rename -- Rename a previously made model")
            output("  delete -- Delete a previously made model")
            output("  list   -- Show a list of all stored models")
            output("  help   -- Show a list of possible commands")
        elif (command == "new"):
            output("Metamodel to instantiate?")
            mm_name = input()
            if (dict_in(root, mm_name)):
                output("Name of model?")
                name = input()
                if (dict_in(root, name)):
                    output("Model exists; aborting")
                else:
                    my_model = instantiate_model(root[mm_name])
                    dict_add(root, name, my_model)
                    model_loaded(my_model)
            else:
                output("Unknown metamodel; aborting")
        elif (command == "load"):
            output("Model to load?")
            name = input()
            if (dict_in(root, name)):
                my_model = root[name]
                model_loaded(my_model)
            else:
                output("Model not found; aborting")
        elif (command == "list"):
            Element keys
            String m_menu_list
            keys = dict_keys(root)
            output("Found models:")
            while (read_nr_out(keys) > 0):
                m_menu_list = set_pop(keys)
                output((("  " + m_menu_list) + " : ") + reverseKeyLookup(root, root[m_menu_list]["metamodel"]))
        elif (command == "delete"):
            output("Model to delete?")
            name = input()
            if (dict_in(root, name)):
                dict_delete(root, name)
                output("Deleted!")
            else:
                output("Model not found; aborting")
        elif (command == "rename"):
            output("Old name?")
            String old_name
            old_name = input()
            if (dict_in(root, old_name)):
                output("New name?")
                String new_name
                new_name = input()
                if (dict_in(root, new_name)):
                    output("Model exists; aborting")
                else:
                    dict_add(root, new_name, root[old_name])
                    dict_delete(root, old_name)
                    output("Rename complete!")
            else:
                output("Model not found; aborting")
        elif (command == "actions"):
            output("Switching to compilation manager!")
            compilation_manager()
            output("Back in model manager!")
        else:
            output("Command not recognized, use 'help' for a list of possible commands")

This code implements a very simple (meta-)modelling tool. Its use is documented with the provided help function. A simple example of its use is shown below.

In this case, note that the value of tokens is the string 3 instead of the integer (or natural) 3. Therefore, the conformance check will flag this value as incorrectly typed.

Upload model

TODO: use the execute_model.py
